NT99型耐腐蝕耐磨管采用日本技術，是針對腐蝕性氣氛窯爐、超高載荷窯爐需求等產品設計的氧化鋁管。NT99型具有超低的吸水率、高溫耐腐蝕、高比重、耐磨等特點。可生產大口徑、1-4米長度。也可用作耐磨陶瓷內襯管。
The NT99 type corrosion-resistant and wear-resistant tube adopts Japanese technology and is designed for products such as corrosive atmosphere kilns and ultra-high load kilns. The NT99 model has characteristics such as ultra-low water absorption, high-temperature corrosion resistance, high specific gravity, and wear resistance. Can produce large caliber, 1-4 meters in length. It can also be used as a wear-resistant ceramic lining pipe.
適用領域 Applicable fields
鋰離子電池輥道窯 Lithium Lon Battery Roller Kiln
耐磨陶瓷內襯管 Wear-resistant ceramic lined pipe
發泡陶瓷 Foam Ceramics
磁性材料輥道窯 Magnetic Material Roller Kiln
產品特點 Product features
耐酸堿侵蝕 Acid and alkali corrosion resistant
高溫抗折強度大 High bending strength at high temperature
導熱系數高 High thermal conductivity
項目Items | 參數Parameter | |
含鋁量Aluminum content（%） | 90 | |
比重proportion（g/cm3） | 3.4 | |
莫氏硬度Mohs hardness | 9 | |
吸水率Water Absorption（%） | 0.1-0.8 | |
彎曲強度 Bending Strength（MPA） | 室溫Room Temp | 70—100 |
高溫High Temp | ≥90（1350℃） | |
熱膨脹系統數Thermal Expansion Coefficient（x10-6/℃）（25~1000℃） | 5.8—6.3 | |
耐急冷急熱性Thermal Shock Resistance | 好Good | |
最高使用溫度Max Working Temp.（℃） | 1350 | |
規格Specification | 外徑30-200mm 長度 100—4000mm | |
注/Note：上述參數是典型的測試結果，與實際使用存在差異。
Above parameters are typical test results, which are different from the actual use.

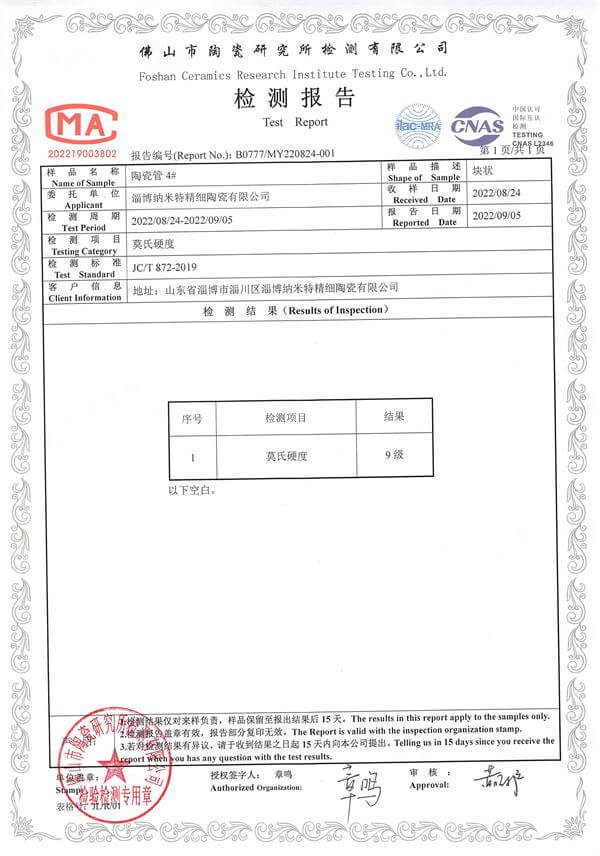

莫氏硬度檢測報告

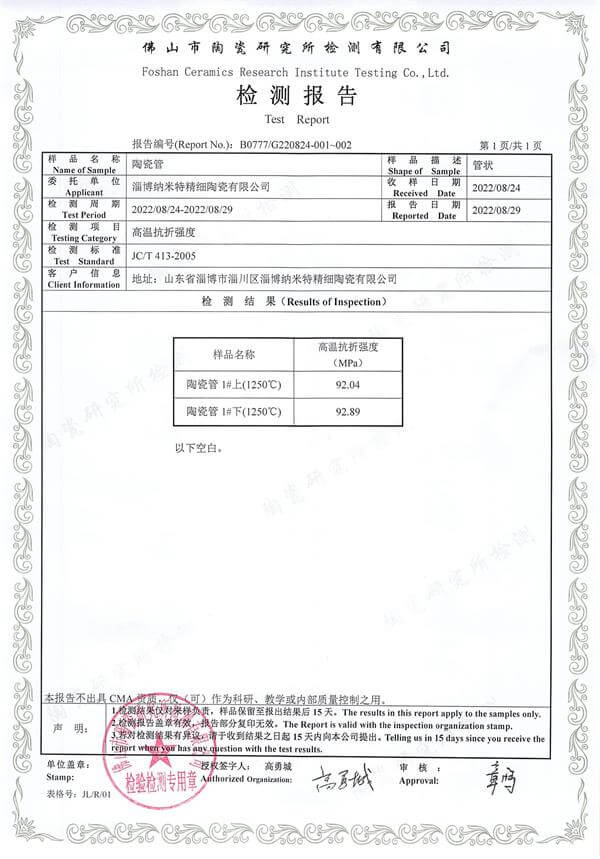

高溫檢測報告
